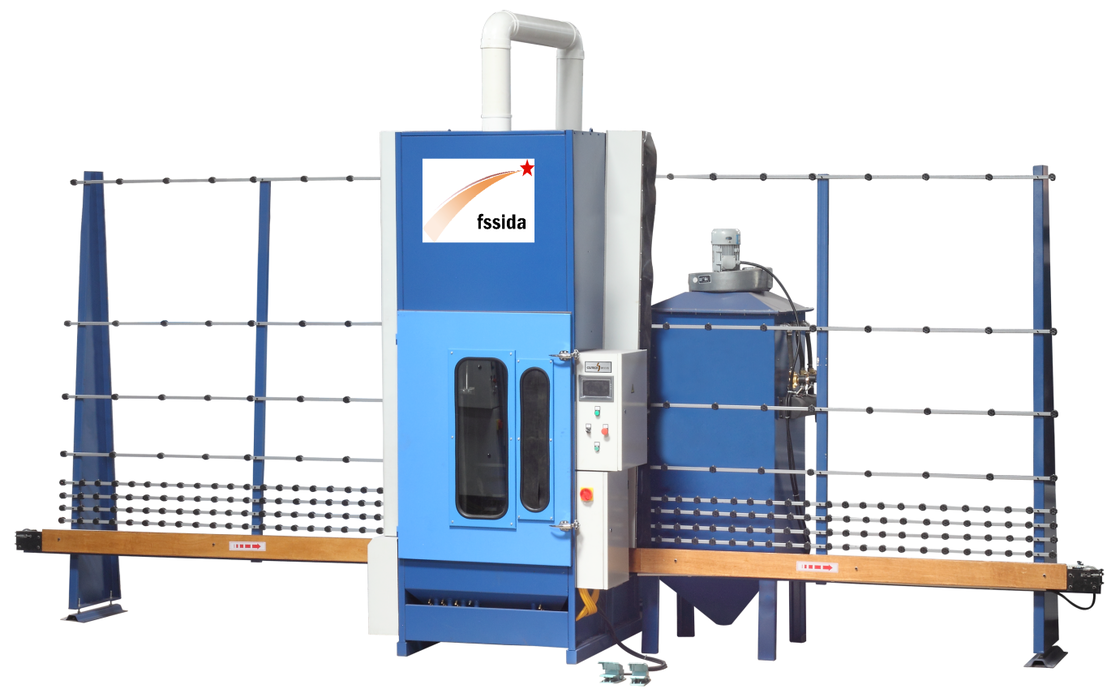

20-30m2/H Automatic Glass Sandblasting Machine Manufacturers Easy Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | FOSHAN STAR |
| Certification: | CB,CE, RoHS, ISO9001 |
| Model Number: | ST-1600/2000/2500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $6500-$9500USD/SET |
| Packaging Details: | Protective Film |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 60Set each month |
|
Detail Information |
|||
| Max Sandblasting Height: | 1500mm/2000mm/2500mm | Cover Area: | 4700x1500x2300/6800x1500x2800/6800x1500x3300 |
|---|---|---|---|
| Total Power: | 3.5Kw | Total Weight: | 1000Kg/1100Kg/1200Kg |
| Gun Inside Diameter: | 8mm | Glass Thickness Range: | 3-50mm |
| Name: | Automatic Glass Sandblasting Machine | ||
| Highlight: | 30m2/h Automatic Glass Sandblasting Machine,20m2/h Automatic Glass Sandblasting Machine,Automatic Glass Sandblasting Equipment |
||
Product Description
Automatic Glass Sandblasting Machine
Machine Introduction
This advanced sandblasting machine offers both automatic and manual operation modes. It features three automatic guns and one manual gun for flexible processing. The guns and glass are moved by synchronous belts, ensuring smooth and precise movement. The gun up-and-down control system is conveniently located outside the machine for easy operation and reduced fault rates. The sandblasting speed ranges from 20-30 m²/h, and dust extraction is handled by bag dust extraction with vibration cylinder.
Technical Specifications
| Parameters | ST-PS1600 | ST-PS2000 | ST-PS2500 |
|---|---|---|---|
| Max Sandblasting Height | 1500mm | 2000mm | 2500mm |
| Cover Area (mm) | 4700×1500×2300 | 6800×1500×2800 | 6800×1500×3300 |
| Total Power | 3.5Kw | 3.5Kw | 3.5Kw |
| Total Weight | 1000Kg | 1100Kg | 1200Kg |
Detailed Configuration
Automatic Guns: 3 units
Manual Work Gun: 1 unit
Gun Inside Diameter: 8mm
Gun Lifting Speed: 8m/min
Glass Conveying Speed: 3.6m/min
Work Speed: 20m²/h
Conveyor Timing Belt Width: 60mm
Lifting Timing Belt Width: 32mm
Minimum Glass Size: 350mm
Glass Thickness Range: 3-50mm
Lifting Motor Power: 0.37KW
Transmission Motor Power: 0.75KW
Dust Removal Fan Power: 2.2KW
Dust Removal Method: Filter Element
Filter Bag Cleaning Method: Automatic
Air Supply Pressure: 0.6-0.8MPA
Air Source Flow: ≥3m³/min
Total Power: 3.5KW
Air Source Requirements
Air Compressor Power: 22KW, Flow Rate: ≥3m³/min
Air Tank: 1m³
Filter: To match air compressor, filter water in compressed air
Included Spare Parts
- Sandblasting Sands: 1 bag
- Brush: 5 pieces
- Tools: 1 set
- Tool Box: 1 piece
Machine Photos
